Kondenzační jedn. ERL145Z1112

Kód: 2-10178

Vaše cena: 67.644,00 Kč bez DPH.

Vaše cena: 81.849,24 Kč s DPH

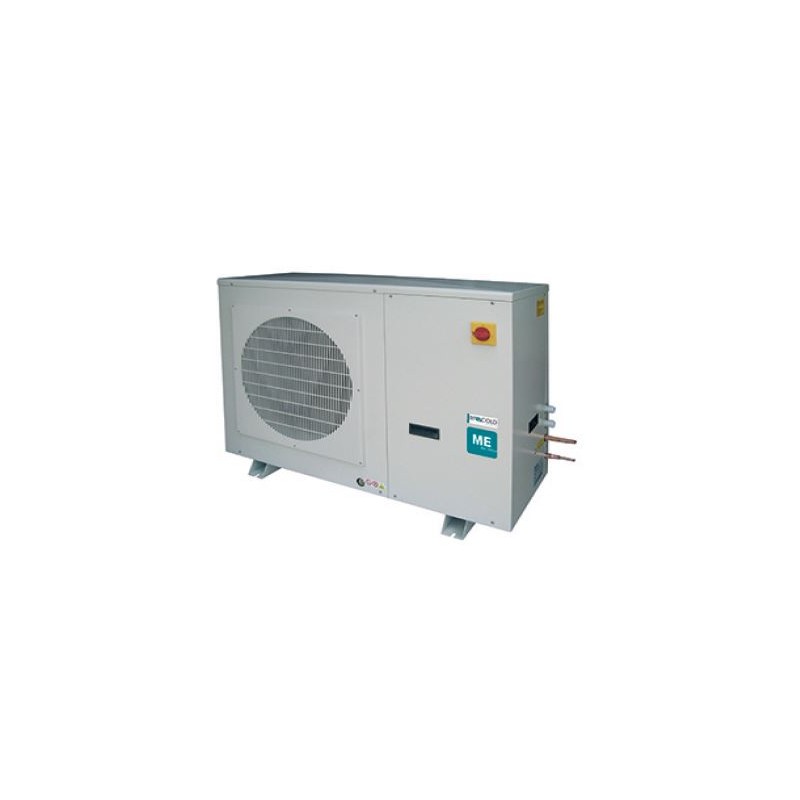

Kondenzační jednotky ERL145Z1112

Počet
Na objednávku (dokončete nákup a my se vám ozveme s termínem dodání)

General features : ERL145Z1112
Self-supporting casing in steel varnished with epoxy powder
Sound insulation
Hermetic reciprocating compressor
Crankase heater
Curved condenser made of copper tube and aluminium fi ns
Condenser fan speed variator
Axial fan motor (230V/1/50Hz) low speed (900 rpm)
Liquid receiver
Drier filter
Sight glass
Dual pressure switch with manual or automatic reset
Condensing unit under nitrogen pressure
Service valves for liquid and suction lines
Connections to be welded
Built-in electrical box equipped with disconnecting switch
The fan-motors in use comply with ErP directive (Regulation EU 327/2011)
Package included


Product file : Condensing units with housing
Code ERL145Z1112
Range ME
Application LBP
Condensation Air
Expansion Valve
Gas R404A
Net weight 87 kg
Liquid diam. 10 mm
Suction diam. 16 mm
Noise 43 dBa 10m
Sizes
Width L 1156 mm
Depth P 420 mm
Height H 785 mm
Absorptions
Power consumption 2489 W
Current consumption 4,9 A
Condenser
Fans no. 1
Diameter 450 mm
Compressor
Model TFH2511Z
Type Hermetic
Brand TECUMSEH EUROPE
Voltage 400/3/50
Displacement 74,25cm³

2-10178
