Kondenzační jedn.SXL363Z042RVC

Kód: 2-10270

Vaše cena: 1.156.772,10 Kč
s DPH

Vaše cena: 956.010,00 Kč bez DPH.

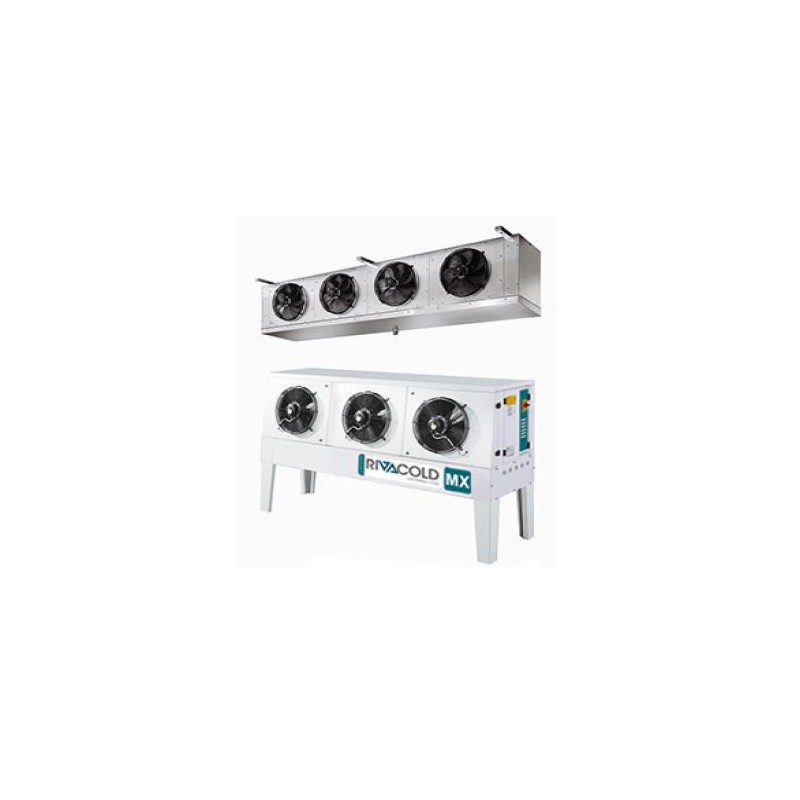

Kondenzační jednotka SXL363Z042RVC, split system

Počet
Na objednávku (dokončete nákup a my se vám ozveme s termínem dodání)

General features : SXL363Z042RVC
Self-supporting casing in zinc plated steel varnished with epoxy powder (RAL 9003), openable front
panels for an easy access to the cooling system
Semi-hermetic compressor with internal motor protection
Crankcase heater
Copper tube condenser and aluminium fins
Axial fan-motors with external rotor
Pressure switchs for condenser fan control
Liquid receiver
Drier filter
Liquid separator
Sight glass
Oil differential pressure switch
High-low pressure switch
Solenoid valve on the liquid line
Shut-off valves connections to be welded
Electrical box (IP54) equipped with general switch, pilot lights, relays for the control of: compressor,
fan-motors, condenser and thermomagnetic protection
The fan-motors in use comply with ErP directive (Regulation EU 327/2011)
Cubic evaporator with electrical defrost it is made of copper tube, aluminium fins and casing
Valve expansion: thermostatic valve and temperature probes fitted
Drain heater
Separate control panel to be installed outside the cold room with electronic temperature control
The SX-RVC split system is shipped in two separate packages: condensing unit package with cold room
panel and evaporator package
Package included


Product file : Refrigerating systems
Code SXL363Z042RVC
Type Split
Mounting Horizontal
Range SX
Version -
Expansion Valve
Application LBP
Gas R404A
Net weight 817 kg
Ped 2
Defrost Electrical
Compressor
Type Semi-hermetic
Voltage 400/3/50
Displaced volume 151,6m³/h
Pipe fittings
Liquid diam. 28 mm
Suction diam. 54 mm
Absorptions
Power consumption 34270 W
Current consumption 63,65 A
Condenser
Fans no. 3
Diameter 630 mm
Air flow 28723 m³/h
Unit cooler
Fans no. 4
Diameter 500 mm
Air flow 34088 m³/h
Air throw 30 m

2-10270
