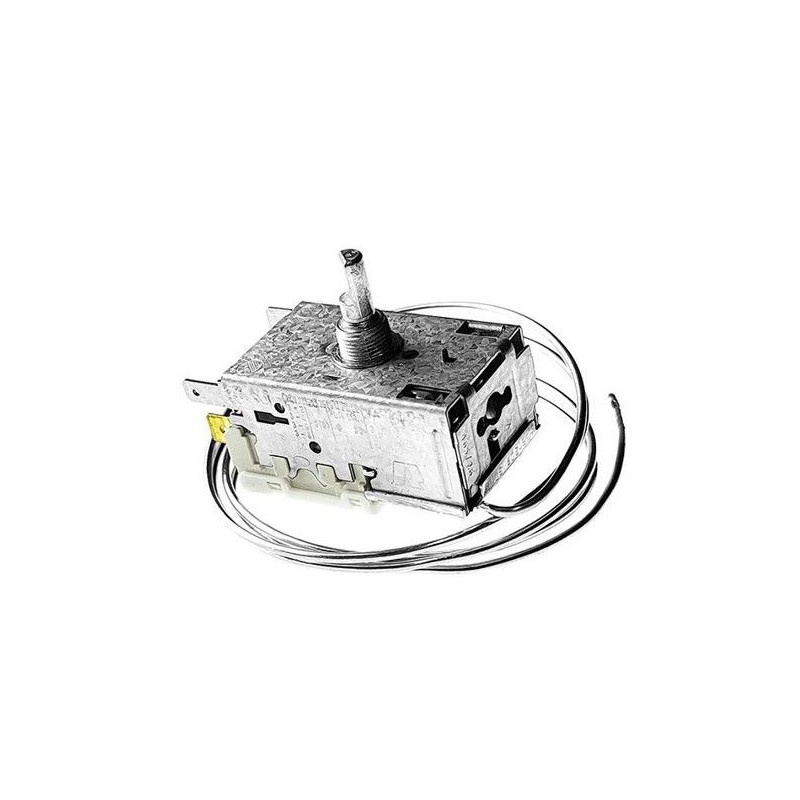

Termostat / K50-L3100 /

The Ranco® K14 and K50 Series Temperature Controls are cold thermostats. The K50 Series is used in both residential and commercial refrigeration applications including fridges and freezers, vending machines, ice makers, liquid coolers, beer coolers, bottle coolers, refrigerated display counters, as well as automotive refrigeration systems, and air conditioning units. The K14 Series is a unique version of the K50 with an extra narrow temperature differential that is particularly suitable for use in automotive refrigeration systems, ice makers, and coolers for beer, liquids and bottles.

Features and Benefits

• SPST close-on-rise switch
• K50 Series - Anti-explosive ATEX approved thermostat version designed with fully enclosed break device. (Thermostat external structure is 1.5mm higher in the switch area than the height of a standard thermostat.)
• K14 Series - Extra narrow temperature differential for custom applications
• Main SPST cycling ON-OFF switch; adjustable or fixed setting thermostats
• Durable and reliable switch and mechanism to help ensure continuous operation of the appliance
• Encapsulated body made of high quality material for exceptional performance and consistent operation
• Faston terminal configurations in various sizes (6.3mm and/or 4.8mm) and positions (vertical, horizontal, or mixed combination positions)
• Capillary lengths range from 300mm to 3000mm with different forms or with bulb
• Compact size
• Standard mounting configuration or with bracket
• IEC certified
