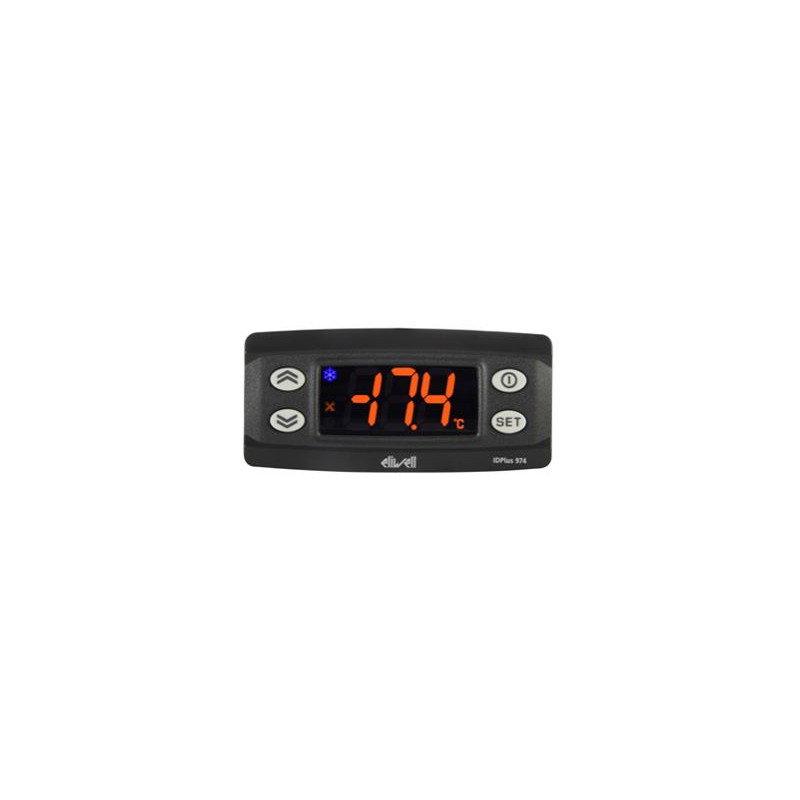

Termostat / IDPLUS974ENG /12V

Part Number IDP2EDB300000

Operating Temperature -5...55

Storage Temperature -30…85

Ambient Humidity 10…90% RH (non-condensing)

Power Supply 12 Vac-dc

Power Consumption 3W max

Display Range

NTC: -50,0…+110,0 °C

PTC: -55,0…+140,0 °C

Pt1000: -55,0...+150,0 °C

N. Analogue Inputs 2

Analogue Inputs 2x PTC or NTC or Pt1000

N. Digital Inputs 1

Digital Inputs 1x SELV

N. Digital Outputs 3

Digital Outputs

1x SPDT 1/2Hp 8(4)A 250Vac

1x SPST 2Hp 12(12)A 250Vac

1x SPST 5(2)A 250Vac

Display LED 3 digits + sign

Resolution ( 0.1°C with decimal point ) 1 or 0,1°C

Measurement Range -55,0…+150,0°C

Accuracy better than 0,5% of full scale + 1 digit

Connectivity

TTL port for connection to UnicardCopy Card or TelevisSystemModBus monitoring device

N. Serial Ports 1

Serial Ports 1x TTL

Installation

panel, 71x29mm

Accessories Unicard USB/TTL

Functions

HACCP, DCC, Easy Map, COH, DI1 configurable as analogic probe

Weight (g) Net 150

Width (L) Net 79

Height (Ht) Net 37

Depth (P) Net 59

Weight (g) Packaging 167

Width (L) Packaging 130

Height (Ht) Packaging 90

Depth (P) Packaging 50
