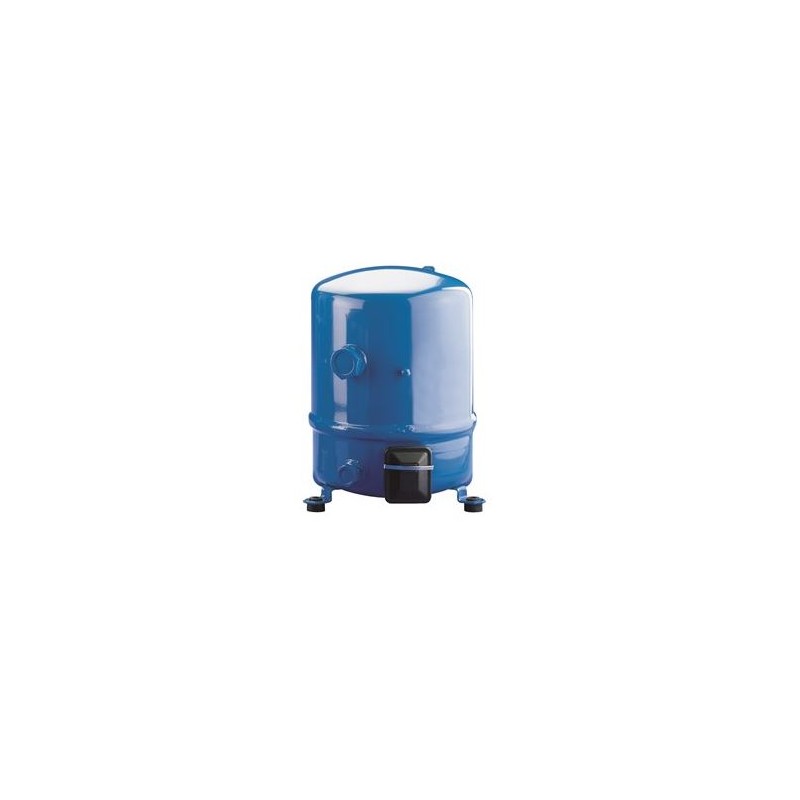

Kompresor MTZ / 0271-55 / 400V

Refrigerant: R134a; R404A; R407A; R407C; R407F; R448A; R449A; R452A; R507A; R513A, Segment usage: Air conditioning;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60

Gross weight 74.5 Kg

Net weight 71 Kg

EAN 5702428963282

Approval standard CE

UL

Brand technique Reciprocating compressor

Capacity control Fixed speed

Colour Blue

Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60

Configuration code Single

Connection type Rotolock

Cylinder 4

Description MTZ160-4

Diameter [mm] 352 mm

Discharge connection height [mm] 125 mm

Discharge connection mounting torque [Nm] 90 N-m

Discharge connection pipe size [in] 0.75 in

Discharge connection rotolock size [in] 1.25 in

Discharge connection size [in] 1.25 in

Discharge connection sleeve pipe size [in] 0.75 in

Drawing number 8504011e

Economizer No

Factory HP [bar] 25 bar

Factory LP [bar] 25 bar

Fitting remark (shipped with rotolock version only)

Fitting sleeve ODF

Fitting standard Rotolock

Frequency [Hz] 50/60

Gauge port HP None

Gauge port LP Schrader

Generation code no

Glass mounting Threaded

Glass torque [Nm] 50 N-m

GP LP torque [Nm] 15 N-m

High value of nominal voltage at 50Hz [V] 400 V

High value of nominal voltage at 60Hz [V] 460 V

High value of voltage range at 50Hz [V] 460 V

High value of voltage range at 60Hz [V] 506 V

IP protection class IP54 (with cable gland)

Low value of nominal voltage at 50Hz [V] 380 V

Low value of nominal voltage at 60Hz [V] 460 V

Low value of voltage range at 50Hz [V] 340 V

Low value of voltage range at 60Hz [V] 414 V

LRA 130 A

MCC 36 A

Model number MTZ160HW4AVE

Motor protection Internal overload protector

Mounting torque [Nm] 50 N-m

Nominal cooling capacity at 50Hz 20.3 kW

Nominal cooling capacity at 60Hz 25.6 kW

Number of starts per hour [Max] 12

Oil charge [L] 3.9 L

Oil equalization 3/8'' flare SAE

Oil equalization torque [Nm] 30 N-m

Oil reference 175PZ

Packaging height [mm] 720 mm

Packaging length [mm] 570 mm

Packaging weight [Kg] 72 kg

Packaging width [mm] 400 mm

Packing format Single pack

Packing quantity 1

Phase 3

Power connections Screw connectors 10-32 UNF x 9.5

Product type MTZ

Refrigerant R134a

R404A

R407A

R407C

R407F

R507A

R448A

R449A

R452A

R513A

Refrigerant charge [kg] [Max] 10 kg

Relief valve 30 bar/8 bar

Rotational speed at 50Hz [rpm] 2900 rpm

Rotational speed at 60Hz [rpm] 3500 rpm

Segment usage Air conditioning

Refrigeration MT

Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets

Shipped instructions Installation instructions

Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil Initial oil charge

Suction connection height [mm] 233 mm

Suction connection mounting torque [Nm] 110 N-m

Suction connection pipe size [in] 1.125 in

Suction connection rotolock size [in] 1.75 in

Suction connection size [in] 1.75 in

Suction connection sleeve pipe size [in] 1.125 in

Swept volume [cm3] 271.55 cm3

Technology Reciprocating

Test dif [bar] [Max] 30 bar

Test HP [bar] [Max] 30 bar

Test LP [bar] [Max] 25 bar

Torque earth [Nm] 3 N-m

Torque power [Nm] 3 N-m

Total height [mm] 540 mm

Type designation Compressor

Winding resistance for three-phase compressors with identical windings [Ohm] 1.15 Ohm
