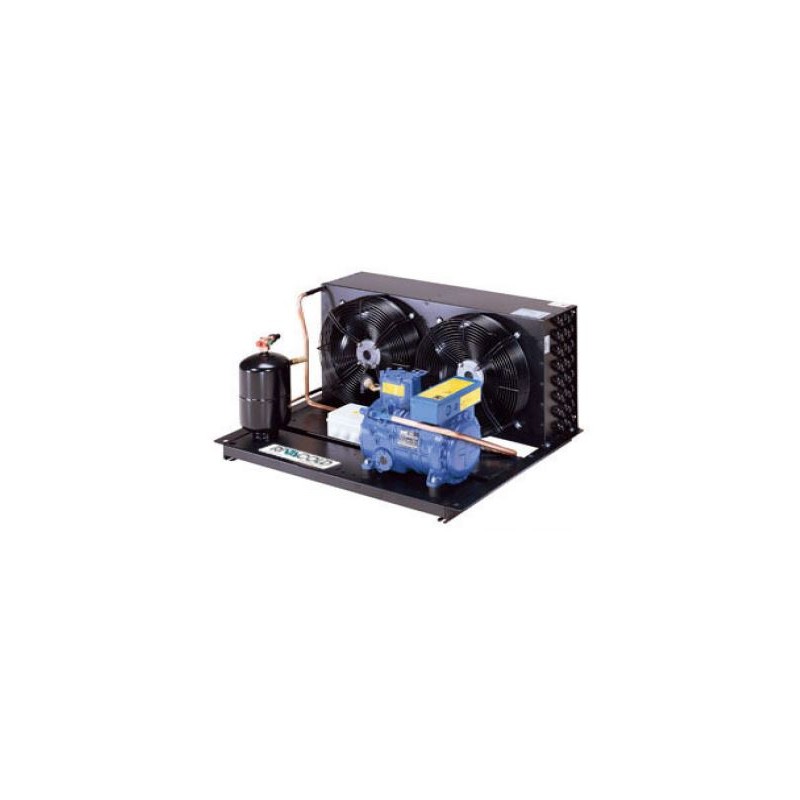

Kondenzační jedn. P-FH005Z2012

General features : P-FH005Z2012
Zinc plated steel frame, epoxy powder coated (RAL 9005)
Base frame on anti-vibration mounts (when provided)
Semi-hermetic compressor with internal motor protection
Voltage 400/3/50 Hz
Condenser coil made of copper tube and aluminium fins (RAL 9005 epoxy powder coating)
External-rotor axial fan motors
Liquid receiver fitted with pressure relief valve
Vibration damper on the discharge line (when provided)
Oil differential pressure switch (when provided)
PSH: High pressure switch, automatic reset, general safety (gas flow < 90 m³/h)
PZH and PZHH: High pressure switch, manual reset and internal high pressure switch manual reset,
general safety (gas flow >= 90 m³/h)
Weld-type shut-off valve connections
Terminal box for fans wiring up to 450mm fans diameter models
Condensing unit supplied with (5bar) nitrogen holding charge
Condensing unit in PED Category 1and 2
Units are packed in a cardboard carton or wooden crate depending upon model

Product file : Open condensing units
Code P-FH005Z2012
Application MBP
Condensation Air
Expansion Valve
Gas R404A
Net weight 64,5 kg
Liquid diam. 10 mm
Suction diam. 16 mm
Sizes
Width L 800 mm
Depth P 560 mm
Height H 415 mm
Absorptions
Power consumption 1278 W
Current consumption 2,8 A
Condenser
Fans no. 2
Diameter 300 mm
Compressor
Model A0,7-5Y
Type Semi-hermetic
Brand FRASCOLD
Voltage 230-400/3/50
Displaced volume 4,93m³/h
MRA 2,8
