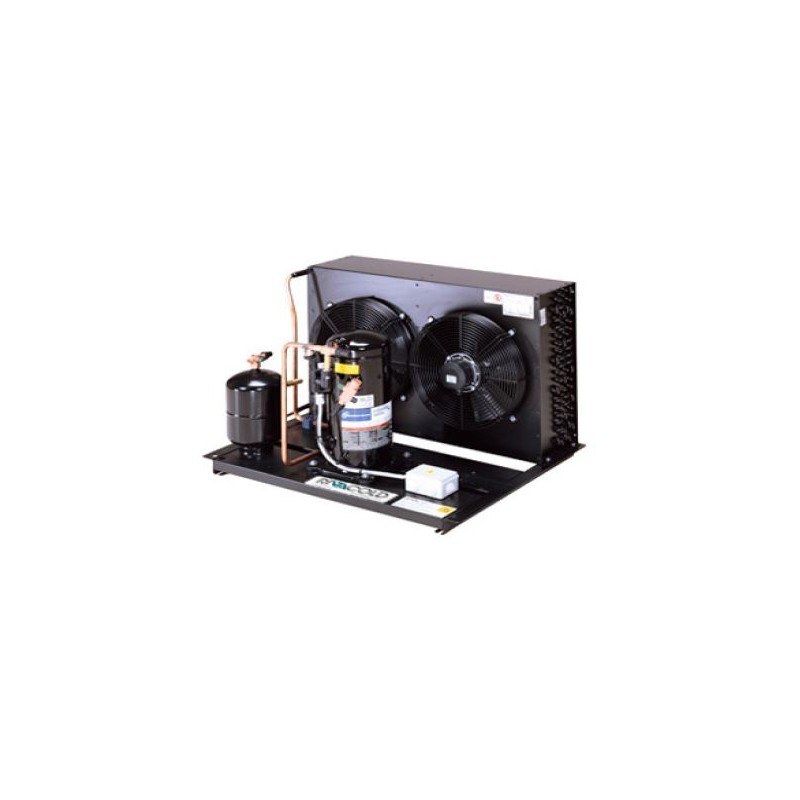

Kondenzační jedn. P-HCR04C2012

General features : P-HCR04C2012
Zinc plated steel frame, epoxy powder coated (RAL 9005)
Scroll compressor with internal motor protection
Condenser coil made of copper tube and aluminium fins (RAL 9005 epoxy powder coating)
External-rotor axial fan motors (whit the exception of Ø 300)
Liquid receiver fitted with pressure relief valve
Vibration damper on the discharge line (when provided)
LCF units must be installed with liquid injection (see optional list)
PSH: High pressure switch, automatic reset, general safety
Weld-type shut-off valve connections
PED directive compliant units
Terminal box for compressors up to 6,5 HP
Condensing unit supplied with (5bar) nitrogen holding charge
Units are packed in a cardboard carton or wooden crate depending upon model

Product file : Open condensing units
Code P-HCR04C2012
Application HBP
Condensation Air
Expansion Valve
Gas R407C
Net weight 72 kg
Liquid diam. 10 mm
Suction diam. 22 mm
Sizes
Width L 800 mm
Depth P 560 mm
Height H 415 mm
Absorptions
Power consumption 2190 W
Current consumption 4,5 A
Condenser
Fans no. 2
Diameter 300 mm
Compressor
Model ZR28K3E-TFD
Type Scroll
Brand COPELAND
Voltage 400/3/50
Displaced volume 6,8m³/h
MRA 5,1
