Kondenzační jedn. P-HCR05C2012
Kód: 2-10134
Vaše cena: 46.972,20 Kč s DPH

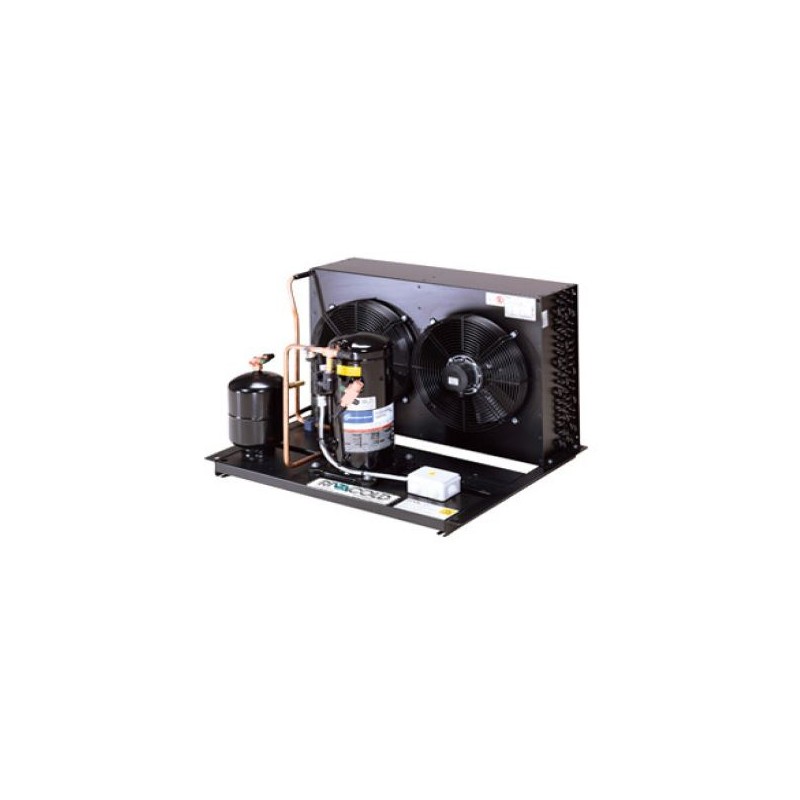

Kondenzační jednotka P-HCR05C2012
General features : P-HCR05C2012
Zinc plated steel frame, epoxy powder coated (RAL 9005)
Scroll compressor with internal motor protection
Condenser coil made of copper tube and aluminium fins (RAL 9005 epoxy powder coating)
External-rotor axial fan motors (whit the exception of Ø 300)
Liquid receiver fitted with pressure relief valve
Vibration damper on the discharge line (when provided)
LCF units must be installed with liquid injection (see optional list)
PSH: High pressure switch, automatic reset, general safety
Weld-type shut-off valve connections
PED directive compliant units
Terminal box for compressors up to 6,5 HP
Condensing unit supplied with (5bar) nitrogen holding charge
Units are packed in a cardboard carton or wooden crate depending upon model
Product file : Open condensing units
Code P-HCR05C2012
Application HBP
Condensation Air
Expansion Valve
Gas R407C
Net weight 53 kg
Liquid diam. 12 mm
Suction diam. 22 mm
Sizes
Width L 930 mm
Depth P 680 mm
Height H 456 mm
Absorptions
Power consumption 2640 W
Current consumption 5,7 A
Condenser
Fans no. 2
Diameter 350 mm
Compressor
Model ZR34K3E-TFD
Type Scroll
Brand COPELAND
Voltage 400/3/50
Displaced volume 8m³/h
MRA 6,2
