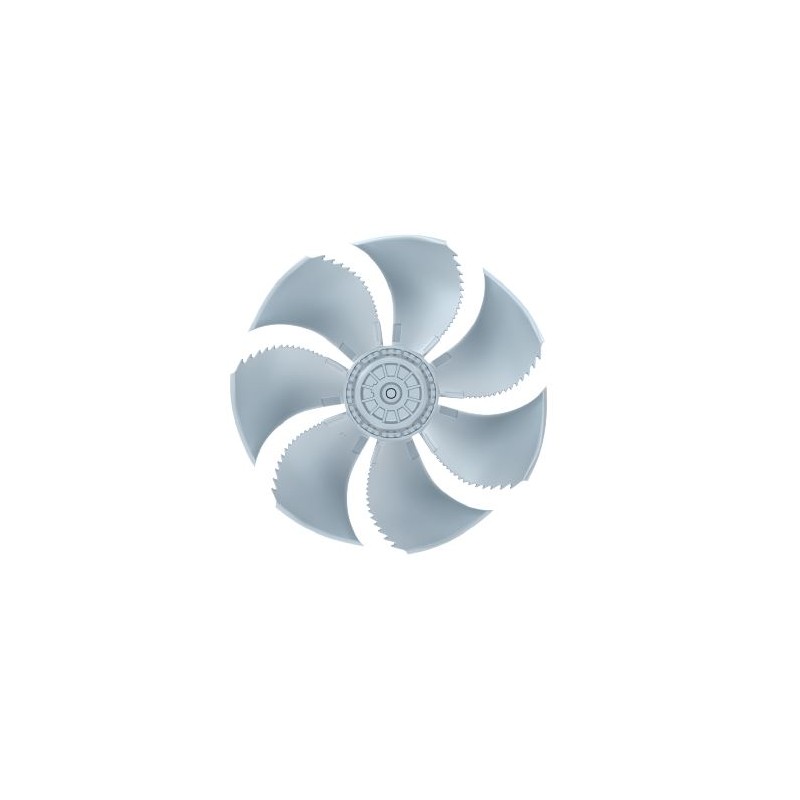

Ventilátor FN056-6EK

Description
Motor technology: AC
Rated voltage U: 1~ 230 V±10 %*
Rated frequency f: 50 Hz* (60Hz data available)
Motor input power P1: 0.39 kW*
Rated current I: 1.80 A*
Rated speed n: 910 min-1*
Starting current IA: 4.20 A
Current increase ΔI: 15 %
Service capacitor C400V: 8.0 μF
Thermal class: THCL155*
Min. permitted conveyor temperature tR(min): -25 °C
Max. permitted conveyor temperature tR(max): 70 °C
Electrical connection: Terminal box
Number of blades: 7
Protection class: IP54
Motor protection: thermal contact
Blades: aluminium, uncoated
Rotor: Aluminium, uncoated
Conformity: ErP 2015, CE
