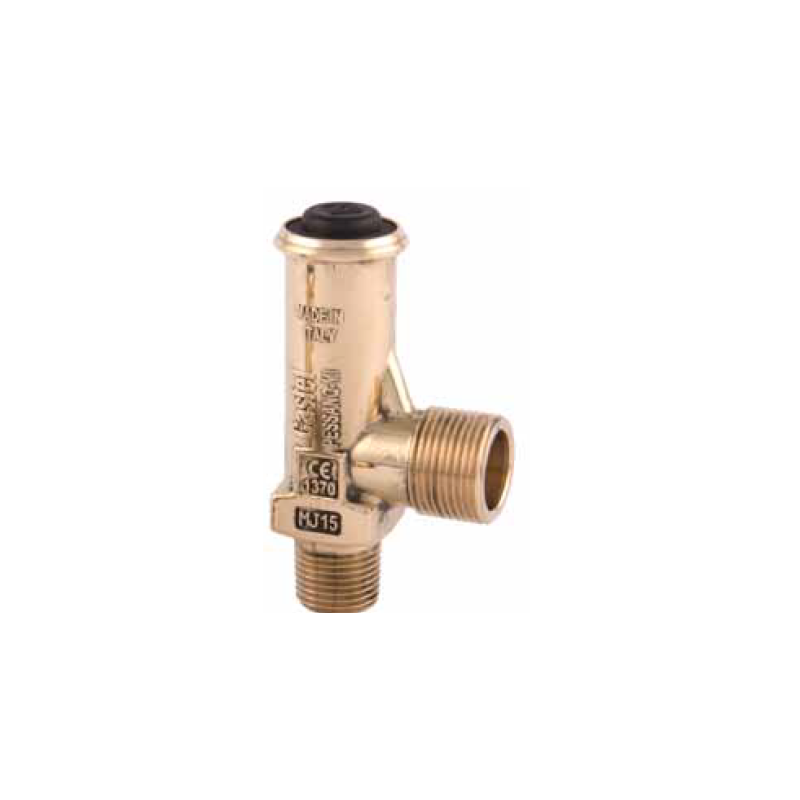

Ventil pojistný 3060/24C280

GENERAL DESCRIPTION
The valves in series 3060 are unbalanced, conventional
direct-loaded safety valves. The valve is opened by the
thrust from the fluid under pressure below the shutter,
when said thrust exceeds, under the calibrated conditions,
the opposing force of the spring acting on the shutter.
Valves are identified by means of:
• a model number formed of an alphanumerical code that
includes:
• the family identity (for ex. 3060/45)
• the type of connection (C = NPT)
• the set pressure, expressed in bar, multiplied by 10
(for ex. 300)
• an alphanumerical serial number.
