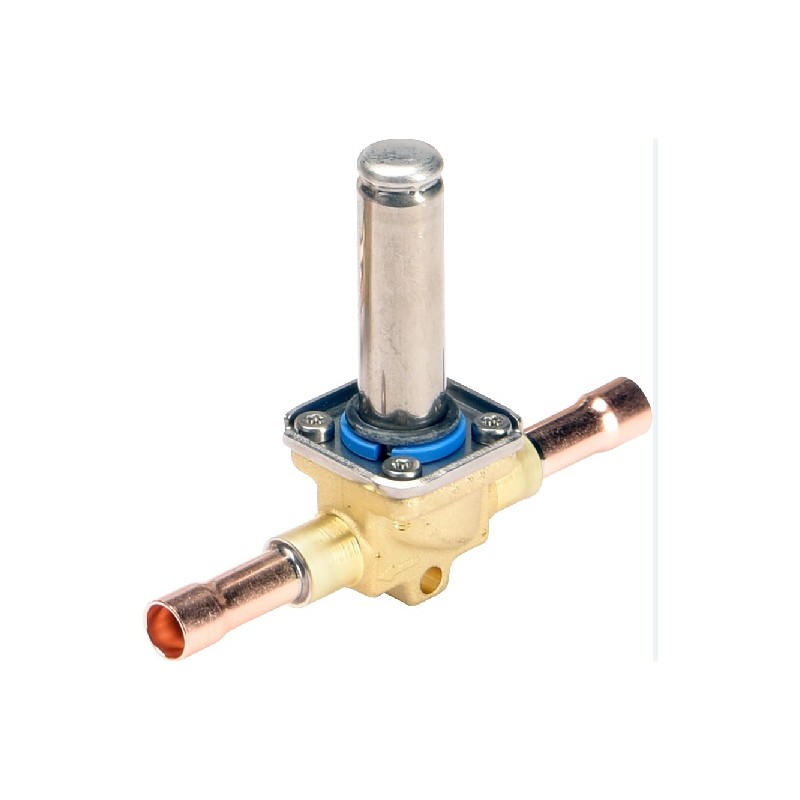

Ventil solenoid / EVR 6 / XX

Product name: Solenoid valve, Type: EVR 6, Function: NC, Inlet size [mm]: 10.00, Inlet connection type: FLARE, Outlet size [mm]: 10.00, Outlet connection type: FLARE, Manual operation option: No

Product details

Gross weight 0.26 Kg

Net weight 0.2 Kg

EAN 5702428952552

Actuator system [mm] 13.5 mm

Ambient temperature -40 - 80 °C

Ambient temperature range [°F] [Max] 175 °F

Ambient temperature range [°F] [Min] -40 °F

Approval UL

EAC

Coil No

Cv value [gal/min] 1.15 gal/min

Direction Straightway

Function NC

Inlet connection type FLARE

Inlet size [in] 3/8 IN

Inlet size [mm] 10 mm

Kv value [m³/h] 1 m3/h

Manual operation option No

Max. Working Pressure [bar] 45.2 bar

Max. Working Pressure [psig] 655 psig

MaxOPD[bar] 10W AC 38 bar

MaxOPD[bar] 20W DC 28 bar

MaxOPD[bar] coil BJ/BX 38 bar

MaxOPD[psi] 10W AC 550 psi

MaxOPD[psi] 20W DC 406 psi

MaxOPD[psi] coil BJ/BX 550 psi

Medium temperature range [°C] [Max] 105 °C

Medium temperature range [°C] [Min] -40 °C

Medium temperature range [°F] [Max] 221 °F

Medium temperature range [°F] [Min] -40 °F

MinODP [bar] 0.03 bar

MinODP [psi] 0.44 psi

MOPD[bar/psi] COIL DEPENDEND

Orifice size [mm] 6 mm

Outlet connection type FLARE

Outlet size [in] 3/8 IN

Outlet size [mm] 10 mm

Packing format Multi pack

Parts Program name EVR

Product family name EVR v2

Product group Solenoid valves

Product name Solenoid valve

Quantity per packing format 12 pc

Refrigerants R1234yf

R1234ze

R125

R134a

R152a

R22

R290

R32

R404A

R407A

R407C

R407F

R410A

R417A

R448A

R449A

R450A

R452A

R507

R600

R600a

R513A

L40

R22/R407C

R404A/R507

R407H

R413A

R422A

R422B

R422D

R438A

R442A

R447A

R447B

R449B

R463A

R512A

R513B

R515A

R515B

System line application Discharge line

Hot gas defrost drain line

Hot gas defrost line

Liquid feed line

Liquid line

Main hot gas defrost line

Suction line

Type EVR 6

Type designation Solenoid valve

Valve operation SERVO-DIAPHRAGM
