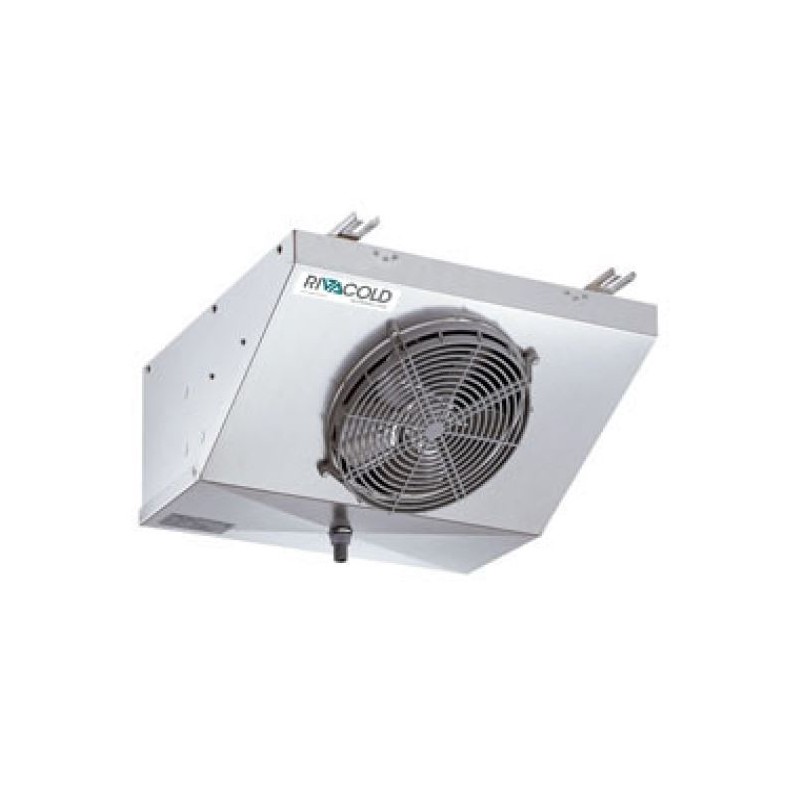

Výparník / RSI-ED / 00001250

General features : RSI1250
RSI range unit coolers have been designed to be installed inside cold rooms suited for fresh and frozen
goods storage.
This range has the advantage of having extremely compact dimensions and at the same time gives
capacities comparable to the RC range. This feature allows applications inside cold rooms with a
minimum encumbrace in height
RSI range is available in two different fan diameters and three types of fin spacing according to the
needed application.
The ED version is supplied with mounted defrosting heaters and is suitable for being used at low
temperature applications.
The range consist of two tipes of coils, both made of aluminium fins and copper tube: 3/8” tube with a geometry of 25x21,65, The model types having 250mm fan diameter are fitted with a coil of 5,3mm fin spacing, suited for
applications with a cold room temperature (Tc) from -30°C to +10°C
The coil is made of aluminium fins and 3/8” copper tube with geometry 25x22
It is tested with nitrogen at a pressure of 25 bar
The fan motor models in use have the following features:
Manufactured following EN 60335-1 laws, with internal thermal protection
Power supply 230-240V/1/50-60Hz
The model types having 350mm fan diameter are made of two different groups: models with 3,5mm fin
spacing suited for cold room temperature (Tc) from -5°C to +15°C; models with 7mm fin spacing suited
for cold room temperature (Tc) from -40°C to +4°C.
IP42 protection rate
Operating temperature from -40°C to +40°C
B insulation class
Electrics made in conformity with 2006/95/CE Low Tension directive
The housing is made of aluminium
The manufacturing solutions used give the housing strength and guarantee the absence of vibrations
during the functioning.
Screws, washers and nuts are made of stainless steel
